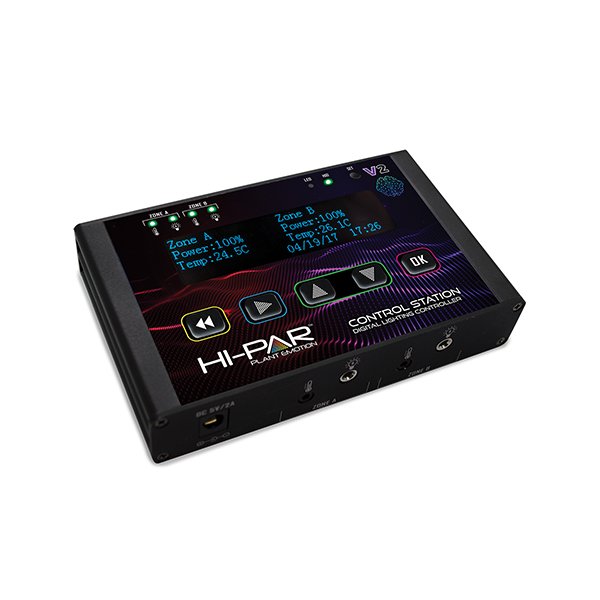

Hi-Par Digital Lighting Control Station V2

The Hi-Par Control Station gives you unprecedented control over your horticultural lighting fixtures. Utilising next-generation programmable technology, your Control Station will precisely monitor and automate your cultivation lighting. The Intelligent Control Station is the ultimate agricultural illumination solution for hobby and commercial farmers!

The unique smart-technology allows your Hi-Par Control Station to regulate the operation of HI-PAR Controllable ballasts. The Control Station cleverly monitors your room temperatures, light timing, automation, dimming and safety control.

Plug and Play! Simply plug the Control Station into your Hi-Par Controllable Ballast for incredibly easy usability! Controllable Ballasts can be daisy-chained together using the TRS “Link” port, giving you control of up to 400 ballasts in two separate rooms!

Features

• Intelligent Control Station:
  • Digital timing, automation and safety control
  • Smart room temperature maintenance
• Next Generation Controller:
  • Suitable for HI-PAR Control 315w, 600w & 1000w Ballasts
  • Unique in-line TRS (Headphone) link
• Agricultural Solutions:
  • Automatic sunrise / sunset feature
  • Digital power dimming by 1% increments for precise control

Specifications

• Control Station for up to 400 lighting kits

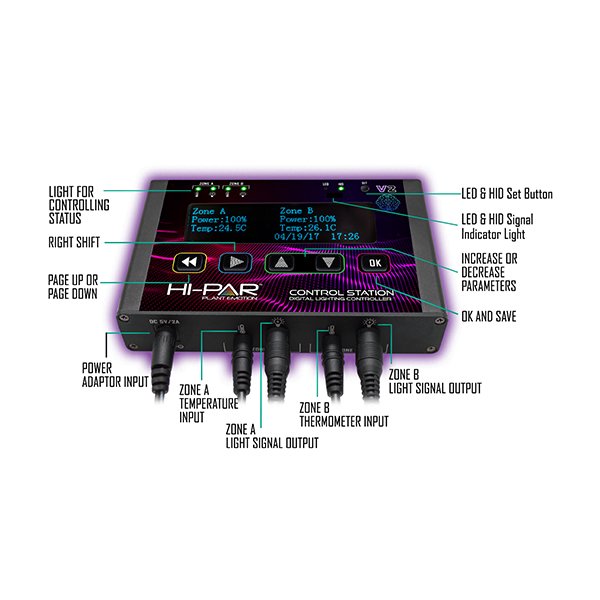

• 2-Channels (Zone A & Zone B)

• Thermo Sensor monitoring and control

• 24 hr Light timing

• Digital dimming control (1% increments)

• Specialised Control TRS link cables

• Customisable sunrise & sunset

• Safety and Thermostat control mechanisms

• Smart room maintenance

• Power = DC5V/2A

• Match Ballasts = 250w, 315w, 400w, 600w, 630w, 750w, 1000w

• Control Command Time Interval = 2S

• Power Dimming Scope = 60% - 110%

• Power Regulation Accuracy = 1%

• Temperature-controlled Adjustable Inspection Scope = 0ºC-40ºC

• Temperature-controlled Protection Inspection Scope = 10ºC-50ºC

• Sunrise and Sunset Duration = 0-30min

Application

For an installation guide, please refer to Hi-Par's user manualhere .
