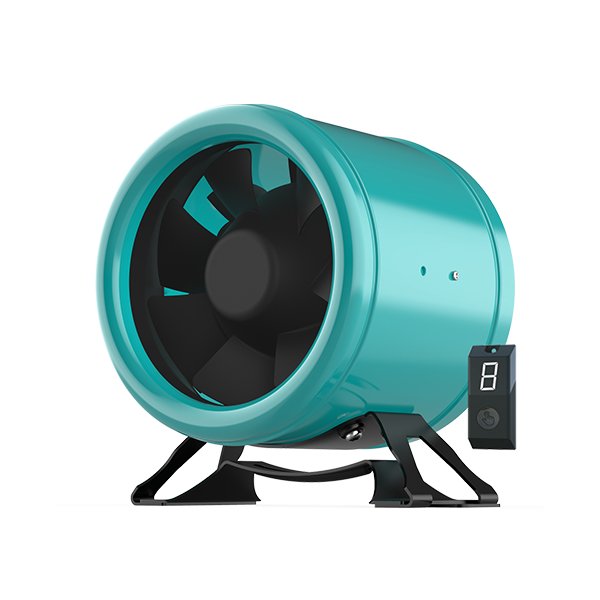

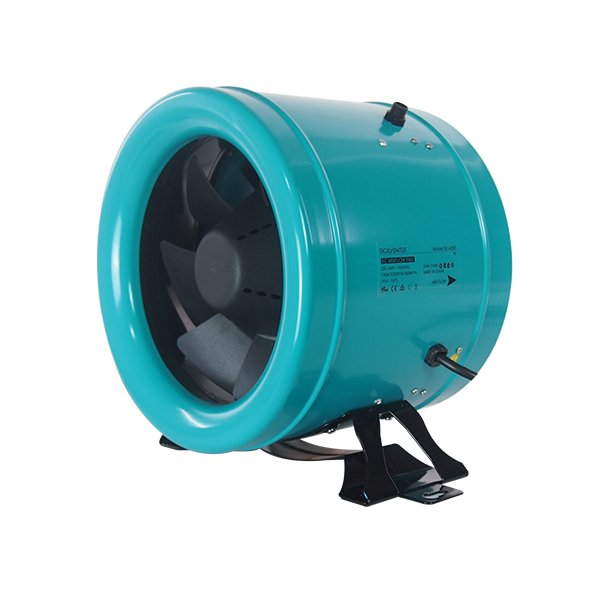

SigilVentus EC Inline Duct Fan w/ Speed Controller - 150mm | 250mm

SigilVentus EC Inline Duct Fan is a mixed flow fan with jet-engine blades design and metal housing combined with a EC-motor for no-humming, no vibration, smooth operation.
It is an outstanding fan in the market because of its high efficiency resulting from built-in multiphase brushless EC motor design, bringing high static pressure rating as well as lowering power consumption.

Features

• Compact & Discreet:

SigilVentus EC Inline Duct Fan features a compact design with a smooth and quiet fan operation.

• Power Efficient:

Half the Power Consumption than Traditional Duct Fans: The T-Series provides outstanding fans in the market because of its high efficiency resulting from built-in multiphase brushless EC motor design, sending up the inline to high speed and bring high static pressure rating as well as keeping a lower level of power consumption.

• Multiple Speed Control:

Each fan comes with a digital 8-speed manual controller, utilising PWM (Pulse Width Modulation) and a DIY speed control wire for any ventilation system or services supporting PWM/0-10V/Potentiometer/Tachometer signal.

• Water-Proof Construction:

IPx4 Water-Proof Treatment for Motors and Control Panels.

• 3-Year Warranty

Specifications

	SE-A150	SE-A250
Fan Size	6 inch | 150mm	10 inch | 250mm
Rated Voltage	220V~240V	220V ~ 240V
Max. Power Consumption	40W	150W
Frequency	50Hz | 60Hz	50Hz | 60Hz
Max. Speed	5000RPM	3200RPM
Max. Airflow	350CFM | 594M3H	1065CFM | 1808M3H
Max. Static Pressure	51mmH2O | 500Pa	52mmH2O | 510Pa
Noise Level	60dBA	65 dBA
IP Rating	IPX4	IPX4
Housing Material	Painted Metal	Painted Metal
Impeller Design	Mixed Flow	Mixed Flow
Motor Type	EC Motor	EC Motor
